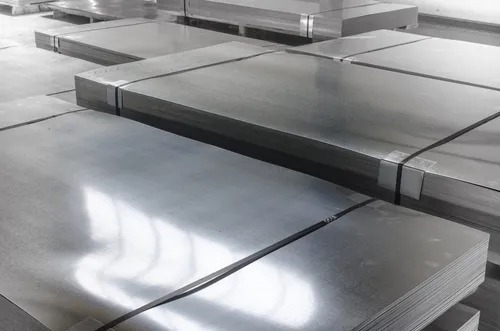

Deep Steel Centre is a prominent brand name starting with one side of the planet then onto the next, and our top-of-the line Monel K500 Sheet and Plate are notable out of control. These a broad assortment of Monel K500 Present Day Sheets strengthen high performance, breathtaking completion, and long life. We are giving these Monel K500 Sheet and Plate in different ends, like various sizes, shapes, and points, furthermore according to client basics or drawings. Our Monel K500 HR plates are invulnerable to air deterioration, salt water, various acids, and stomach settling specialists. These Monel K500 Sheet and Plate are utilized in different locales, including heat exchangers, saline course of action warmers, and cladding for the upper bits of crude petroleum treatment office segments. We are also the best sellers of Monel K500 Sheet and Plate, etc.
Specifications | ASTM B127 / ASME SB127, BS EN 10088-2, en 10028-7, IS 6911 |
Dimension Standard | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
Size Range | Cold rolled ASME SB127 Grade K500 Monel Sheet 0.5-6.4 mm Hot-Rolled ASME SB127 Grade K500 Monel Sheet 3.0–10.0 mm |
Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
Thickness | 0.3 mm to 120 mm |
International Standard of Monel K500 Sheets & Plates | ASTM A480 ASTM A959 ASME IID EN ISO 9445 EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 |
Tolerances (width / thickness) of Monel K500 Sheets & Plates | EN 10258/ DIN 59381) EN 10151 ASME SB127 K500 Monel Strips EN 10088 SA -240-K500 Strips |
Finish of Monel K500 Sheets & Plates | 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot-Rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish Hot-Rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |
Form | Sheet, Plate, Strip, Flats, Clad Plate, Coils, Foils, Plain Sheet, Flat Shim, Flat Sheet, Shim Sheet, Rolling Sheet, Rolling Plate, Rolls, Blank (Circle), soft annealed, descaled, tread plate, sheared, annealed, Checker Plate |
STANDARD | WERKSTOFF NR. | UNS |
Monel K500 | 2.4375 | N05500 |
Grade | C | Mn | Si | S | Cu | Fe | Ni |
Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |
