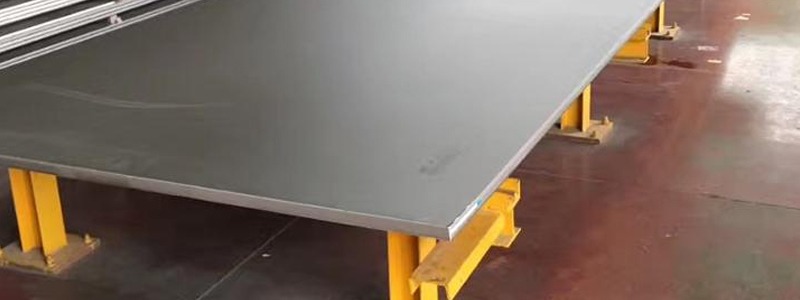

Duplex Steel S31803/S32205 Sheets and Plates

Duplex Steel S31803/S32205 Sheets and Plates

Deep Steel Center is occupied with assembling, loading, and sending out the Duplex Steel Sheets and Plates in wide ranges. The sheets and plates are likewise provided to our worldwide clients in predominant quality. Nonetheless, the sheets and plates are accessible to them in various particulars. A portion of the determinations where the sheets and plates are accessible are surface completion, end finish, aspects, shapes, sizes, length, and sturdiness. The sheets and plates which are there are likewise given to the clients in a cut made details.

The sheets and plates are utilized promptly in the modern applications with the best nature of the amalgam utilized in the tension vessels. They are assuming an extraordinary part in the family, business, semi-business, and every one of the modern areas. Nonetheless, there are blended kinds of sheets and plates that are accessible on the lookout. Along these lines, there are many kinds of sheets and plates that are accessible to be utilized in modern applications. The sheets and plates as modern hardware just contrast in the thickness that they are having. With this, they are utilized in the modern applications and the sorts are chosen by the application in which they are utilized.

Duplex steel utilized is having the two appearances with the ferrite and austenitic treated steel grade. Notwithstanding, this is harder than the unadulterated ferrite grades which are there with tempered steel. With the presence of the hardened steel grades, the duplex steel is having wonderful strength. Additionally, it is having the protection from the pressure consumption breaking which is there with the carbon and chromium contents there with the combination. What's more, the most generally utilized tempered steel grades in the modern applications are treated steel 304 and hardened steel 316.

What's more, with the presence of the duplex steel composite, the Duplex Steel Sheets and Plates are great at having numerous properties. A portion of the properties which are there with the sheets and plates are consumption obstruction, extraordinary malleability, solidness, high sturdiness, weldability, steadiness in the raised temperatures, and pitting erosion opposition. This is how the enterprises are involving the sheets and plates in the applications for having a smooth progression of work.

S31803/S32205 Duplex Steel Sheets and Plates Equivalent Grades

Duplex S31803 / S32205 1.4462

Specification of Duplex Steel S31803/S32205 Sheets and Plates

Duplex Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.

Chemical Composition of Duplex Steel S31803/S32205 Sheets and Plates

Grade Common Name C% Mn% Si% P% S% Cr% Ni% Mo% N%
2205 S31803 0.030 2.00 1.00 0.030 0.020 21.0-23.0 4.5-6.5 2.5-3.5 0.08-0.20
2205 S32205 0.030 2.00 1.00 0.030 0.020 22.0-23.0 4.5-6.5 3.0-3.5 0.14-0.20

Mechanical Properties Of Duplex Steel S31803/S32205 Sheets and Plates

Tensile strength 620MPa min Density 7,805kg/m3
Yield strength 450MPa mi Elastic modulus 200GPa


Eastern Europe Asia North America Western Europe Mid East/Africa
Australia Central/South UAE America Portugal
Spain Indonesia Italy Angola Poland
Brazil Sri Lanka Russia China Singapore
Oman Venezuela Costa Rica USA Qatar
Thailand Canada Saudi Arabia Bahrain Egypt
Malaysia Turkey Mexico China Peru
United States Nigeria Jordan Kuwait Dubai
Bangkok Iran Germany UK New Zealand
Vietnam South Africa Mexico Kazakhstan


Mumbai Ahmedabad Bhopal Bikaner Pune
Delhi Chennai Visakhapatnam Mangalore Nagpur
Bangalore Kolkata Siliguri Assam Indore
Hyderabad Surat Nashik Cochin Thane
Faridabad Rajkot Aurangabad Bhavnagar Ranchi
Coimbatore Mysore Salem Tirupur Bikaner
Raipur Bhubaneswar Bhilai Ankleshwar Bhiwandi
Vadodra Kochi


Deep Steel Center Co. is one of the leading manufacturer and supplier of S31803 Duplex Steel ASTM A240 Sheets and Plates, Duplex S32205 ASME SA 240 Coils, S31803/S32205 Duplex Foils, S31803 Duplex Steel Strips, ASTM A240 S32205 Perforated Sheets, ASME SA 240 S31803/S32205 Sheets, Plates, Coils at the best price in India.
