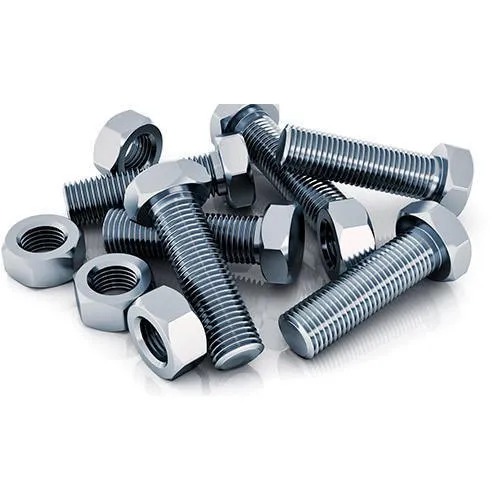

Subsequently, when it is endeavored to kill, the joint emerges with having a piece of the harms on the lines. Moreover, there are different sorts of locks that are accessible for use in the undertakings. A piece of such catch that are open are screws, locks, nuts, washers, hung bars, holding rings, implants, secures, and secure.
Compound 20 is the austenitic blend grade which contains nickel, iron, and chromium. Anyway, the blend is made with the most silly use really research limit with such ordinary horrifying assaults. This is the mix that is having the utilization check under the raised temperatures and it change against the chloride-containing made compounds. The compound 20 grade likewise settles in context on the niobium which is there in the arranged plan of the composite steel. Mix is moreover having the mechanical and substance properties which are basic in the improvement of the coordinating parts.
With the presence of the wide alloying parts in the mix, the safe made are containing a couple of properties. A piece of the properties which the Combination 20 Clasp is having are use obstruction, pitting debilitating block, and opening isolating opposition. Nearby this, the alloying parts which are there are giving the safeguarded something like a few properties. A piece of the properties which the catch are having are remarkable flexibility, robustness, reliable quality in the high temperatures, striking strength, high adaptability, and others.
Alloy 20 Fasteners Manufacturers in Mumbai, Alloy 20 Fasteners Suppliers in Mumbai, Alloy 20 Fasteners Stcokists in Mumbai, Alloy 20 Fasteners Exporters in Mumbai
800/800HT/825 Incoloy ASTM B408 Fasteners Equivalent Grades
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
---|---|---|---|---|---|---|---|---|
Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | - | X8NiCrAlTi32-21 | XH32T |
Incoloy 825 | 2.4858 | N08825 | NCF 825 | NA 16 | ЭП703 | NFE30C20DUM | NiCr21Mo | XH38BT |
Chemical Composition of Incoloy Industrial Fasteners
Incoloy | 800 | 800H | 825 |
---|---|---|---|
Ni | 30-35 | 30-35 | 38.0 – 46.0 |
Fe | 39.5 min | 39.5 min | 22.0 min |
Cr | 19-23 | 19-23 | 19.5 - 23.5 |
Cu | 0.75 max | 0.75 max | 1.5 - 3.0 |
Ti | 0.15-0.60 | 0.15-0.60 | 0.6 - 1.2 |
Al | 0.15-0.60 | 0.15-0.60 | 0.2 max |
C | 0.1 max | 0.05-0.1 | 0.05 max |
Mn | 1.5 max | 1.5 max | 1.0 max |
S | 0.015 max | 0.015 max | 0.015 max |
Si | 1.0 max | 1.0 max | 0.5 max |
Mb | - | - | 2.5 - 3.5 |
Mechanical Properties Of ASME SB408 Incoloy Bolts & Nuts
Inconel 800/800HT | |
---|---|
Tensile Strength | Psi – 75,000 , MPa – 520 |
Yield Strength (0.2%Offset) | Psi – 30,000 , MPa –205 |
Elongation | 30 % |
Inconel 825 | |
Tensile Strength | Psi – 80,000 , MPa – 550 |
Yield Strength (0.2%Offset) | Psi – 32,000 , MPa –220 |
Elongation | 30 % |
Physical Properties of Incoloy 800/800HT/825 Pipe Fasteners
Density lbm/in3 |
Thermal Conductivity (BTU/h ft. °F) |
Electrical Resistivity (in x 10-6) |
Modulus of Elasticity (psi x 106 |
Coefficient of Thermal Expansion (in/in)/ °F x 10-6 |
Specific Heat (BTU/lb/ °F) |
Melting Range (°F) |
---|---|---|---|---|---|---|
at 68°F: 0.285 | 9.4 at 212°F | 28.3 at 68°F | 28 | 9.4 at 32 – 212°F | 0.1200 at 68°F to 212°F | 2500 to 2590 |
12.4 at 932 °F | 39.4 at 752°F | 10.2 at 32 – 1000°F | ||||
49.6 at 1652 °F | 10.4 at 32 – 1500°F |
